Luxxor® LXC Borescope Camera

Luxxor® LXC Borescope Camera

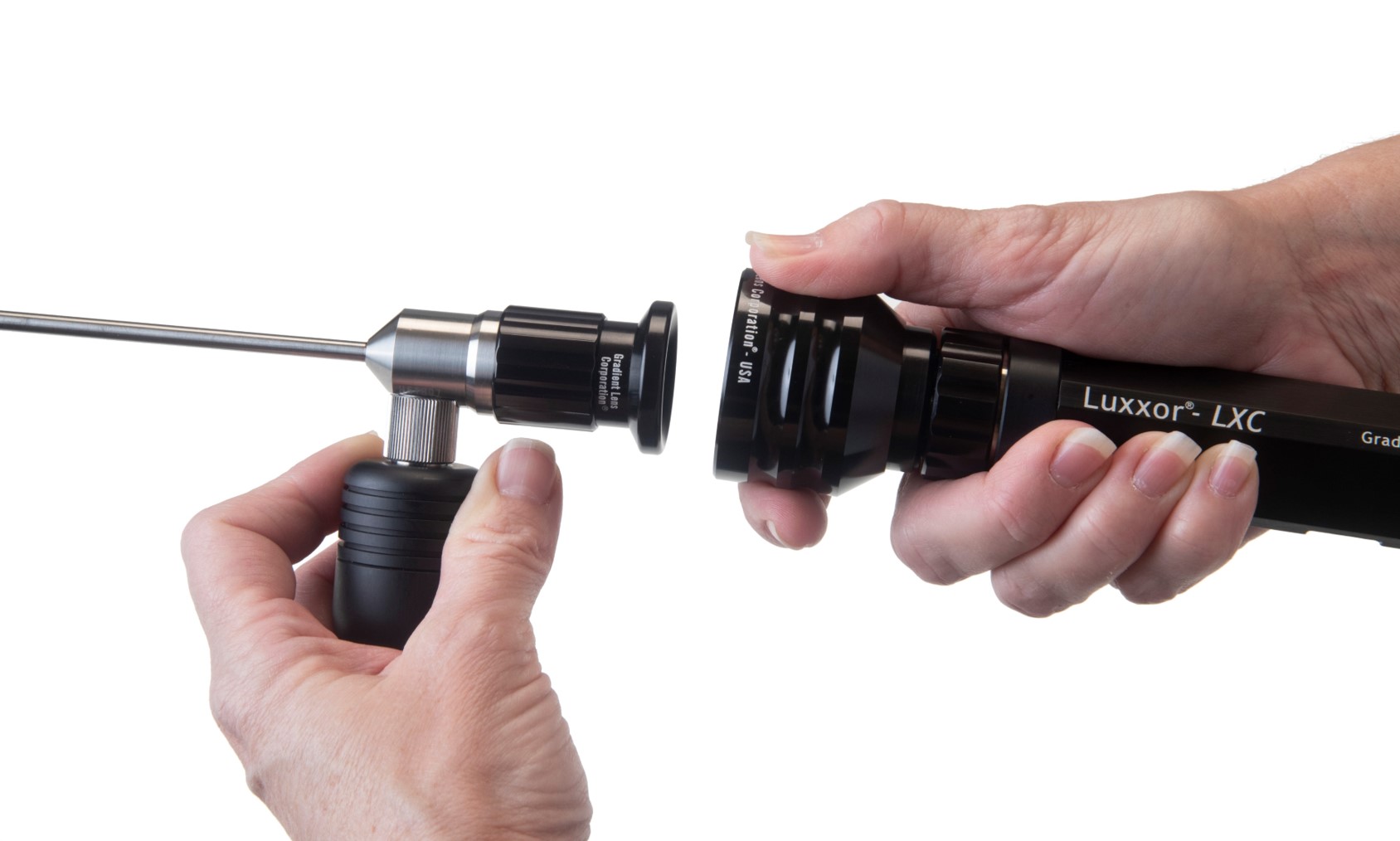

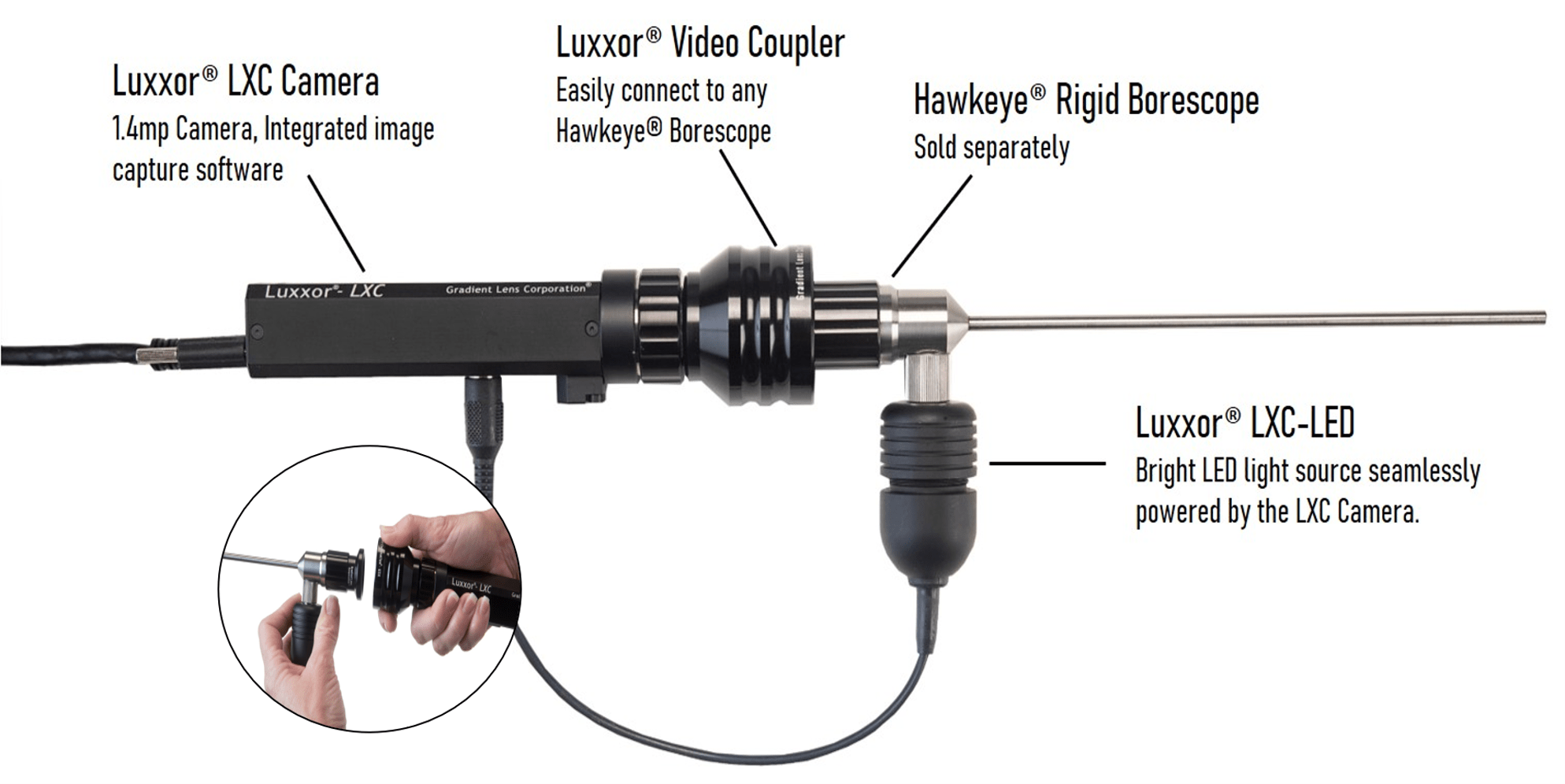

The New Luxxor LXC Borescope Camera attaches to any Hawkeye® Rigid or Flexible Borescope, transforming it into a complete Video Borescope System.  The System contains the New LXC HD video borescope camera with 1/2.9” Sony 1.4MP CMOS sensor and IMX6 Image Processor for crystal clear images, a camera controlled LED light source, and 25mm Luxxor Video Coupler lens.  The borescope camera offers an HDMI output.

Buy Now

Luxxor® LXC Borescope Camera

Product Model# Price
Video Kits: Include LXC Camera, Light Source, Video Coupler, Software, HDMI/USB Cables, Power Supply and Carrying Case. (Borescope sold separately)
Kit with LXC Video Camera LXC-VBSM $3,295 Buy Now
Viewing Options
17” HD Industrial Monitor HVM-17-LXC $995 Buy Now
Hawkeye Video Slides
Horizontal - 24" HVSLIDE-24H $995 Buy Now
Horizontal - 48" HVSLIDE-48H $1,445 Buy Now
Extra V-Block for Video Slide HV-VBSTAGE-XY $395 Buy Now
Components Sold Separately
LXC Camera LXC $2,495 Buy Now
Luxxor Video Coupler Lens VC-25-LXC $445 Buy Now
LXC LED Light Source LXC-LED $345 Buy Now
LXC HDMI Video Cable LXC-HCBL-022.1 $45 Buy Now
LXC USB Video Cable LXC-USBCABLE $60 Buy Now
LXC USB to 110v Adapter LXC-PWR-SUPPLY $25 Buy Now
Hawkeye Pro Carrying Case PCC-LXC $375 Buy Now

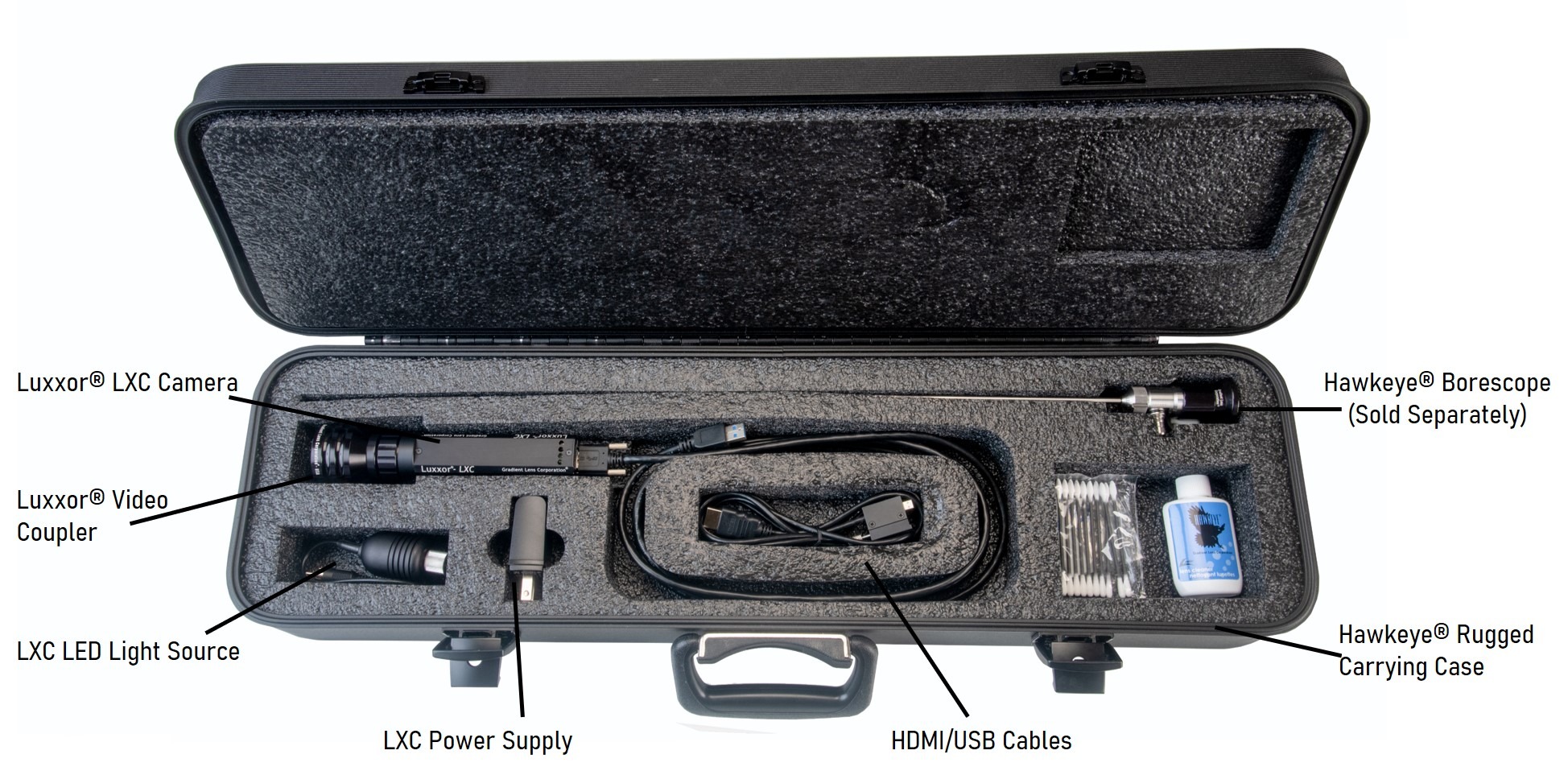

Video Kit includes LXC Camera, LXC LED Light Source, Video Coupler Lens, Integrated Software, HDMI/USB Cables, Power Supply and Carrying Case.

Download Pricing Table

Luxxor® LXC Borescope Camera

The New Luxxor LXC Borescope Camera attaches to any Hawkeye® Rigid or Flexible Borescope, transforming it into a complete Video Borescope System.  The system contains the New LXC HD borescope camera with 1/2.9” Sony 1.4MP CMOS sensor and IMX6 Image Processor for crystal clear images, a camera controlled LED light source, and 25mm Luxxor Video Coupler lens.  The LXC borescope camera is tailored to provide a bright and clear image with our smaller MicroSlim and SuperSlim Rigid Borescope.

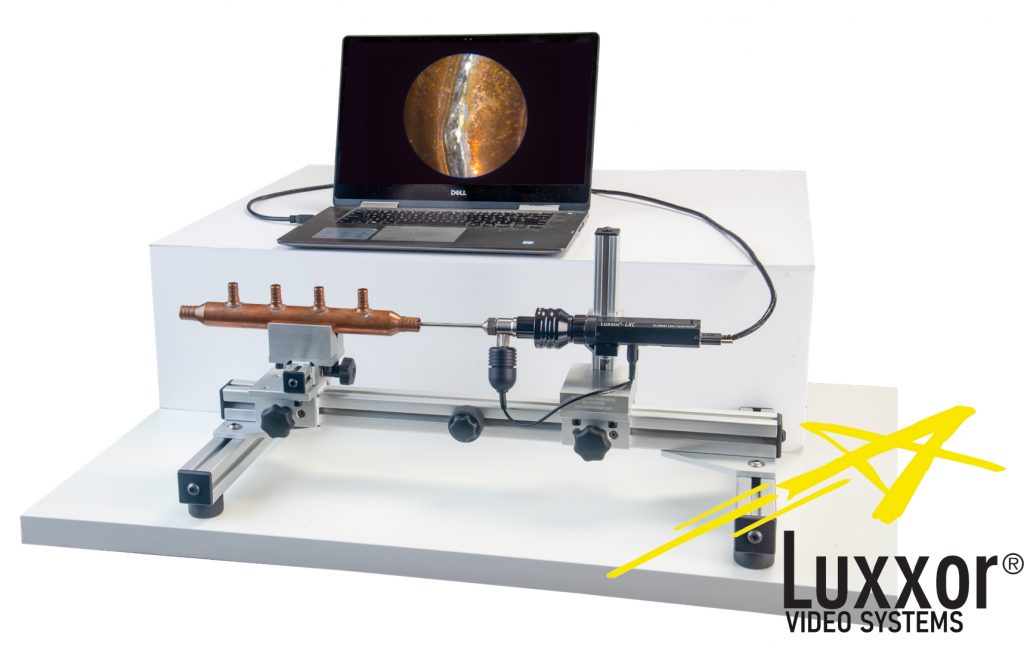

Optional components like the Hawkeye® Video Slide limit the variables with repetitive inspections while making them easier, faster, more efficient and much more comfortable for the user.



Luxxor® Video System Specifications

LXC-Camera:
Image Sensor 1/2.9” Sony IMX273 Color CMOS, 1.58mp with IMX6 Image Processor
Effective Pixels 1440 x 1080
Frame Rate 30fps
Video Out HDMI
Lens Mount C-Mount
AGC Auto or Manual
Operating Temp 0 to 40 deg C (32 to 104 F)
Storage Temp -30 to +60 deg C (-22 to +140F)
Dimensions 25mm x 28mm x 110mm (without video coupler lens)
Mount 1/4 - 20 Tripod Thread
LED Integrated bright LED light source with automatic exposure

Download Specifications

The LXC camera has the Video ToolBox Pro software integrated. Video ToolBox pro includes the following features:

  • Image and Video Capture
  • Digital Zoom
  • Crosshair/Grid Overlay
  • Image Labeling

Download Software
