Video Borescopes – Q2 HD

Hawkeye® Q2 HD Video Borescopes

Hi-Res Rugged Video Borescope

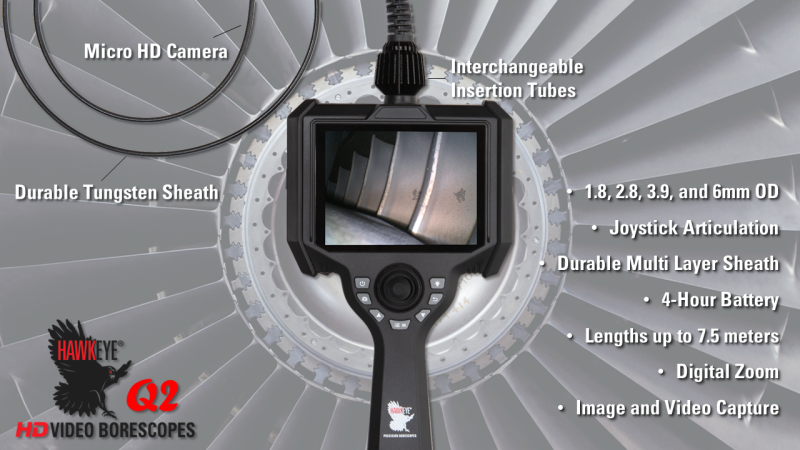

The Hawkeye® Q2 HD Video Borescope is built for the realities of industrial manufacturing, where inspections demand both precision and toughness. Delivering 6x higher resolution than its predecessor in a compact, portable design, the Q2 is engineered to thrive in harsh environments without compromising image quality.

Available in diameters from 1.8mm to 6mm and lengths up to 7.5 meters, the Q2 provides the reach and versatility required for everything from confined castings to large-scale equipment. Its rugged 4-layer tungsten sheathing and reinforced housing are designed to withstand daily use on the shop floor, while 2-way and 4-way joystick articulation give you complete control navigating complex applications.

With a high-resolution HD camera and display, the Q2 captures sharp, detailed images and videos—easily stored to a micro-SD card. A 4-hour rechargeable battery keeps you working without interruption, and interchangeable insertion tubes with a dual-camera option make the Q2 adaptable across multiple inspection needs.

Starting at just $6,995, the Hawkeye® Q2 delivers unmatched value for manufacturers seeking to reduce downtime, improve quality control, and ensure equipment reliability.

Ready to see the difference rugged precision makes? Schedule a free demo today.

Q2_Brochure1.10

Hawkeye Q2 Brochure

Specifications

Model Numbers & Prices

Buy Now

Video Borescopes – Q2 HD

Diameter Length Articulation Sheath DOV Model# Resolution Price
Q2 Kit Includes: Hawkeye Q2 Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case.
1.8mm 1.0m (3'3") 2-Way Tungsten 0° VQ2 018 1000 2L 720x720p Camera $12,495 Buy Now
2.8mm 1.5 meter (4'11") 4-Way Tungsten 0° VQ2 028 1500 4L 720x720p Camera $9,995 Buy Now
3.9mm 1.5m (4’11”) 4-Way Tungsten 0° VQ2 039 1500 4L 1MP Camera $7,995 Buy Now
3.9mm 3.0m (9’10”) 4-Way Tungsten 0° VQ2 039 3000 4L 1MP Camera $8,995 Buy Now
6.0mm 1.5m (4’11”) 4-Way Tungsten 0° VQ2 060 1500 4 1MP Camera   $6,995 Buy Now
6.0mm 3.0m (9’10”) 4-Way Tungsten 0° VQ2 060 3000 4 1MP Camera   $7,995 Buy Now
6.0mm 7.5m (24’6”) 4-Way Tungsten 0° VQ2 060 7500 4 1MP Camera $14,995 Buy Now
Q2 Insertion Tubes Only
1.8mm 1.0m (3'3") 2-Way Tungsten 0° VQR 018 1000 2L 720x720p Camera $10,495 Buy Now
2.8mm 1.5 meter (4'11") 4-Way Tungsten 0° VQR 028 1500 4L 720x720p Camera $7,995 Buy Now
3.9mm 1.5m (4’11”) 4-Way Tungsten 0° VQR 039 1500 4L 1MP Camera $5,495 Buy Now
3.9mm 3.0m (9’10”) 4-Way Tungsten 0° VQR 039 3000 4L 1MP Camera $6,795 Buy Now
6.0mm 1.5m (4’11”) 4-Way Tungsten 0° VQR 060 1500 4 1MP Camera $4,795 Buy Now
6.0mm 3.0m (9’10”) 4-Way Tungsten 0° VQR 060 3000 4 1MP Camera $5,795 Buy Now
6.0mm 7.5m (24’6”) 4-Way Tungsten 0° VQR 060 7500 4 1MP Camera $12,995 Buy Now
Q2 Video Borescope Spare Battery
VQ2-BATT $395 Buy Now
Q2 Video Borescope Host
VQ2-HOST $2,595 Buy Now
Q2 Video Borescope Replacement Charging Cable
VQ2-CHGCBL $95 Buy Now
Q2 Video Borescope Replacement HDMI Cable
VQ2-HDMI-CABLE $75 Buy Now
Q2 Video Borescope Case (under 6 meter)
VQ2-CASE $395 Buy Now

Download Pricing Table

Hawkeye®

Q2 Video Borescope

Gradient Lens Hawkeye® Q2 HD Video Borescope features diameters of 1.8, 2.8, 3.9 and 6mm. The Q2 features new technology that will allow our customers to change insertion tubes, and offer a dual 0 and 90 camera view.  The Q2 Video Borescopes offer 2 and 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact, portable and durable design.

Expanding on the popular Hawkeye V2 and V3, which were launched in 2012, the new Q2 incorporates technological advancements that expand the offering of video borescopes offered by Gradient Lens Corporation.

The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.

Hawkeye® Q2 Video Borescope Specifications

Diameter 1.8 (.073") (+.1mm/-0mm)
2.8 (.110") (+.1mm/-0mm)
3.9, and 6.0mm (.154, and .236" )
Lengths 1.8mm: 1.0meter (3'3")*
2.8mm: 1.5meter (4'11")
3.9mm: 1.5meter (4'11"), 3meter (9'10") *
6mm: 1.5meter (4'11"), 3meter (9'10"), 6.0meter (19'6"), 7.5meter (24'6")
Articulation 1.0 - 2.0m length: +/- 140° min. (+/- 10°)
1.5 - 3.0m length: +/- 110° min. (+/- 10°)
7.5m length: +/- 90° min. (+/- 10°)
Field-of-View 1.8mm: 110°: Diagonal +/- 10°
2.8-6mm: 100° Diagonal +/- 10° **
Depth-of-Field 1.8 and 2.8mm OD: 2.5mm - infinity
3.9 and 6.0mm OD: 8mm - infinity***
Direction-of-View 0°
90° ****
0 & 90° (Dual View)
Sheath Tungsten Braid
Illumination Integrated White LED
Display 5" HD Display
Camera 1.8 and 2.8mm: 720x720p Color Camera
3.9, 4.5 and 6mm: 1MP Color CMOS
Interfaces HDMI, USB, Micro-SD
Battery 4 hr. run time, Rechargeable Li-Ion
Recording Media Micro-SD Card
Digital Photo Format JPEG
Video Format MPEG 4
Operating Temp. Range Probe: - 20 to +60C (-4 to +140 F) :
Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range - 20 to + 60 C (-4 to +140 F)
Weight 2.2LB
Environmental Sheath: IP67*****
Host: IP54
Note * Longer lengths available upon request.
** FOV varies depending on resolution setting. Custom FOV available upon request.
*** Custom Depth of Field available upon request
**** Dedicated 90° are available upon request.
***** 1.8mm Splash resistant only

Please contact our sales team at 585-235-2620 for more information.

Download Specifications
