Hardy Rigid Borescopes

Pro Hardy™ .250″ (6.35 mm)

Hawkeye® Pro Hardy Borescopes are rugged and bright. The quarter inch diameter Pro Hardy gives 3x the illumination of the Pro Slim. The Hawkeye Pro Hardy Borescope excels at looking into the larger, dark spaces of diesel and aircraft cylinders, tanks, pressure vessels, pipes, and even wall cavities.

Buy Now

Hardy Rigid Borescopes

Product Tube Length Model# Price
Borescope Kits
7" Pro Hardy Kit 7" (180 mm) PH07-NVK $1,895 Buy Now
12" Pro Hardy Kit 12" (305 mm) PH12-NVK $1,995 Buy Now
17" Pro Hardy Kit 17" (435 mm) PH17-NVK $2,095 Buy Now
22" Pro Hardy Kit 22" (559 mm) PH22-NVK $2,495 Buy Now
Borescope Only
7" Pro Hardy Borescope 7" (180 mm) PH07 $1,295 Buy Now
12" Pro Hardy Borescope 12" (305 mm) PH12 $1,395 Buy Now
17" Pro Hardy Borescope 17" (435 mm) PH17 $1,495 Buy Now
22" Pro Hardy Borescope 22" (559 mm) PH22 $1,895 Buy Now
Mirror Tubes
7" Pro Hardy Mirror Tube 7" (180 mm) MTH07 $210 Buy Now
12" Pro Hardy Mirror Tube 12" (305 mm) MTH12 $220 Buy Now
17" Pro Hardy Mirror Tube 17" (435 mm) MTH17 $230 Buy Now
22" Pro Hardy Mirror Tube 22" (559 mm) MTH22 $270 Buy Now

Download Pricing Table

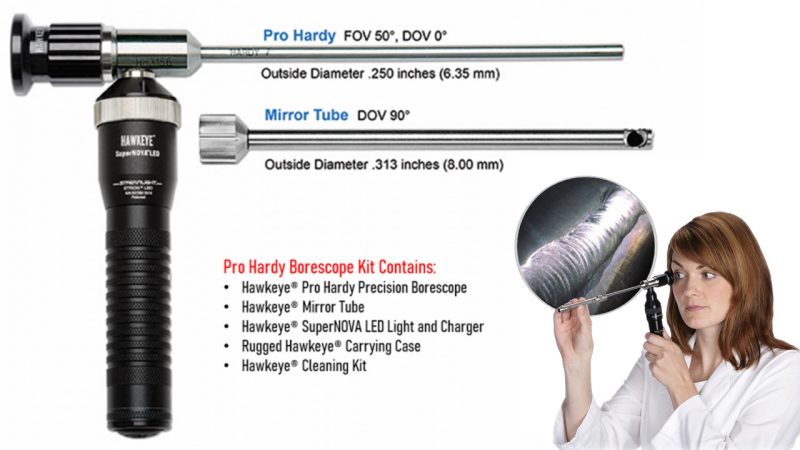

Pro Hardy™ .250″ (6.35 mm)

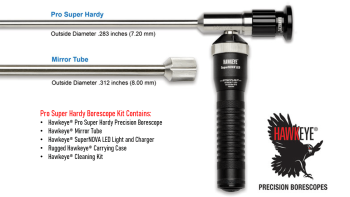

Hawkeye® Pro Hardy and Pro Super Hardy
Borescopes are rugged and bright. The quarter inch diameter Pro Hardy gives 3x the illumination of the Pro Slim. The Super Hardy is slightly wider at .283 inches, and is available in lenghts of 28 and 37 inches.

The Hawkeye Pro Hardy Borescope excels at looking into the larger, dark spaces of diesel and aircraft cylinders, tanks, pressure vessels, pipes, and even wall cavities.

Hawkeye Pro Rigid Borescopes contain:

• Our latest endoGRINs® image relay lenses

• Multicoated objective lens

•LightConcentrator™ light post

• Independent focusing ring for convenient video and still photography

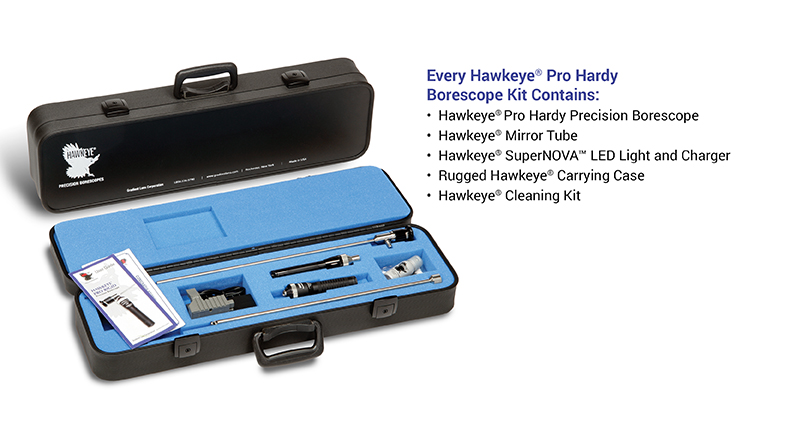

A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases.

Hawkeye® Pro Hardy Specifications

Optics
Field-of-View 50°
Direction-of-View
Relay Optics e2 endoGRINs® Glass Relay Lenses
Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction
Length 7", 12", 17", 22"
Diameter Scope: .250" (6.35 mm), w/ Mirror Tube: .313 (8.00 mm)
Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300"
Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube 304 Stainless Steel
All Machined Stainless Steel 303 Stainless Steel
Eyecup and Focusing Ring Aluminum, black anodized
Front Window AR coated optical Glass
Illumination Fiber Optical Glass
Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range Official - 20° to 120° C.
Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2 These scopes were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

Download Specifications
