Dual View HD Video Borescopes

Hawkeye® Q2 HD Dual View Video Borescopes

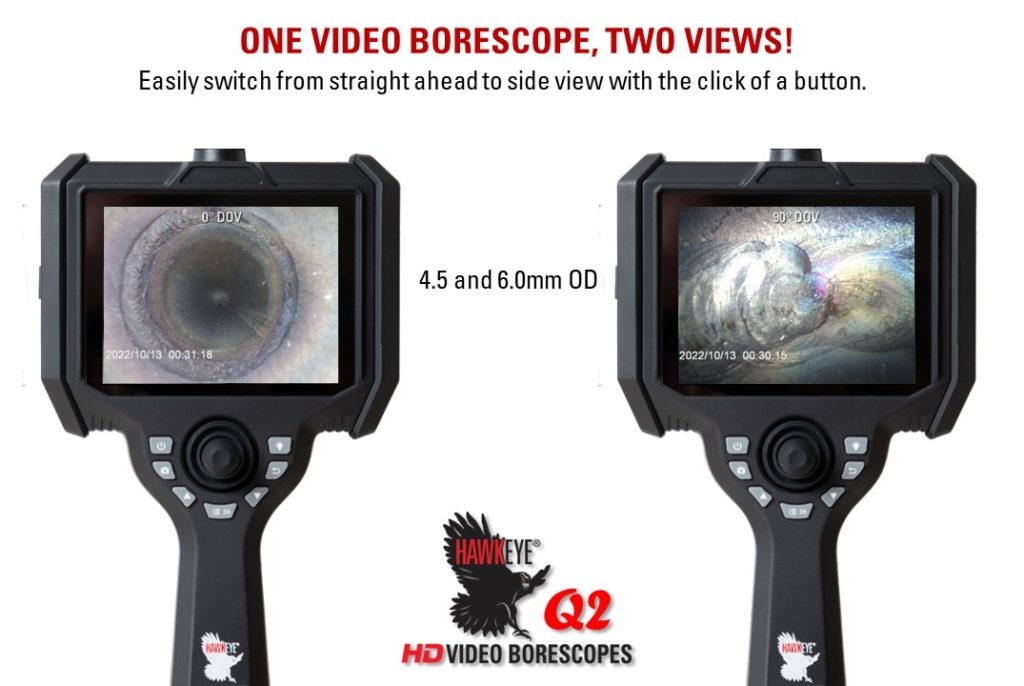

We are happy to introduce the Hawkeye® Q2 HD Dual View Video Borescopes. The Q2 HD Dual View Video Borescopes eliminate the need for thread-on tips. The Dual View HD video borescopes have two cameras, allowing customers to easily switch from straight ahead to side view with the touch of a button. The Dual View Q2 is offered in 2.8, 4.5 and 6mm, with lengths up to 7.5 meters. The Dual View Q2 features 4-way joystick articulation, 4-hour integrated battery, interchangeable insertion tubes, and a dual camera option. The HD cameras provides users with high-resolution images and videos which can be captured onto the micro-sd card.  The Dual View Q2 starts at only $7,495. Schedule your free demo today!

Q2_Brochure1.6

Buy Now

Dual View HD Video Borescopes

Diameter Length Articulation Sheath Model# Price
Q2 Kit Includes: Hawkeye Q2 Dual View Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case.
2.8mm 1.0m (3'3") 4-Way Tungsten VQ2 028 1000 4DL $10,995 Buy Now
4.5mm 1.5m (4’11”) 4-Way Tungsten VQ2 045 1500 4D $8,495 Buy Now
4.5mm 3.0m (9’10”) 4-Way Tungsten VQ2 045 3000 4D $9,495 Buy Now
6.0mm 1.5m (4’11”) 4-Way Tungsten VQ2 060 1500 4D $7,495 Buy Now
6.0mm 3.0m (9’10”) 4-Way Tungsten VQ2 060 3000 4D $8,495 Buy Now
6.0mm 6.0m (19'8") 4-Way Tungsten VQ2 060 6000 4D $13,495 Buy Now
Q2 Dual View Insertion Tubes Only
2.8mm 1.0m (3'3") 4-Way Tungsten VQR 028 1000 4DL $8,995 Buy Now
4.5mm 1.5m (4’11”) 4-Way Tungsten VQR 045 1500 4D-1 $6,495 Buy Now
4.5mm 3.0m (9’10”) 4-Way Tungsten VQR 045 3000 4D-1 $7,495 Buy Now
6.0mm 1.5m (4’11”) 4-Way Tungsten VQR 060 1500 4D-1 $4,995 Buy Now
6.0mm 3.0m (9’10”) 4-Way Tungsten VQR 060 3000 4D-1 $5,995 Buy Now
6.0mm 6.0m (19'8") 4-Way Tungsten VQR 060 6000 4D $11,995 Buy Now
Q2 Video Borescope Spare Battery
VQ2-BATT-DV $395 Buy Now
Q2 Video Borescope Host
VQ2-HOST-DV $2,595 Buy Now
Q2 Video Borescope Replacement Charging Cable
VQ2-CHGCBL-DV $95 Buy Now
Q2 Video Borescope Replacement HDMI Cable
VQ2-HDMI-CABLE-DV $75 Buy Now
Q2 Video Borescope Case (under 6 meter)
VQ2-CASE-DV $395 Buy Now

Download Pricing Table

Hawkeye Q2 Video Borescope

Hawkeye®

Q2 Dual View Video Borescope

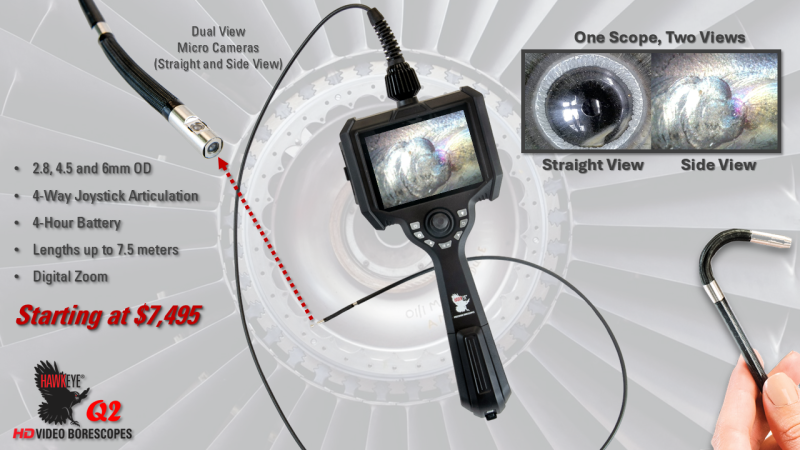

Gradient Lens Hawkeye® Dual View Q2 HD Video Borescope features diameters of 2.8, 4.5 and 6mm. The Dual View technology eliminates the need for thread on tips. Now customers can get a single scope with two independent cameras and toggle between views without removing the scope from the inspection.  The Q2 Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact, portable and durable design.

The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.

Hawkeye® Q2 Dual View Video Borescope Specifications

Diameter 2.8, 4.5 and 6.0mm (.110, .177 and .236" )
Lengths 2.8: 1m (3'3")*
4.5: 1.5meter (4'11"), 3meter (9'10")*
6mm: 1.5meter (4'11"), 3meter (9'10"), 6.0m (19'8"), 7.5meter (24'6")
Articulation 1m length: +/-140° min. (+/-10°)
1.5 - 3.0m length: +/-140° min. (+/- 10°)
6.0m length: +/-110° min. (+/- 10°)
Field-of-View 0° DOV: 100° Diagonal +/- 10° **
90° DOV: 90° Diagonal +/- 10° **
Depth-of-Field 2.8mm:
0° DOV: 3mm - infinity
90° DOV: 2mm - infinity

4.6 and 6mm:
0° DOV: 8mm - infinity***
90° DOV: 6mm - infinity***
Direction-of-View 0 & 90° (Dual View)
Sheath Tungsten Braid
Illumination 2.8mm: Front LED

4.5 and 6mm:
Integrated Rear White LED
Display 5" HD Display
Camera 2.8mm:
400X400 CMOS

4.5 and 6mm:
1MP Color CMOS
Interfaces HDMI, USB, Micro-SD
Battery 4 hr. run time, Rechargeable Li-Ion
Recording Media Micro-SD Card
Digital Photo Format JPEG
Video Format MPEG 4
Operating Temp. Range Probe: - 20 to +60C (-4 to +140 F) :
Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range - 20 to + 60 C (-4 to +140 F)
Weight 2.2LB
Environmental Sheath: IP67
Host: IP54
Note * Longer lengths available upon request.
** FOV varies depending on resolution setting. Custom FOV available upon request.
*** Custom Depth of Field available upon request

Please contact our sales team at 585-235-2620 for more information.

Download Specifications
