Micro Q2 Video Borescopes

Hawkeye® Q2 Micro Video Borescopes: Under 1mm OD

We are happy to introduce the Hawkeye® Q2 Micro Video Borescopes. Customers inspecting small parts have been waiting decades for a high resolution video borescope solution. The Micro Q2 Video Borescopes innovative technology finally allows users inspecting small parts to use video borescope technology. The full screen high resolution image is 8x the resolution of the 1mm MicroFlex fiberscope, with a more compact and portable design. The Micro Q2 is offered in diameters as small as .95mm and lengths up to 1.5 meters long. The Micro Q2 incorporates a tight bend radius, 4-hour integrated battery, interchangeable insertion tubes, and integrated LED. Schedule your free demo today!

Q2_Brochure1.6



Buy Now

Micro Q2 Video Borescopes

Diameter Length Articulation Sheath DOV Model# Price

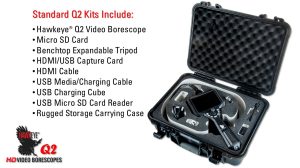

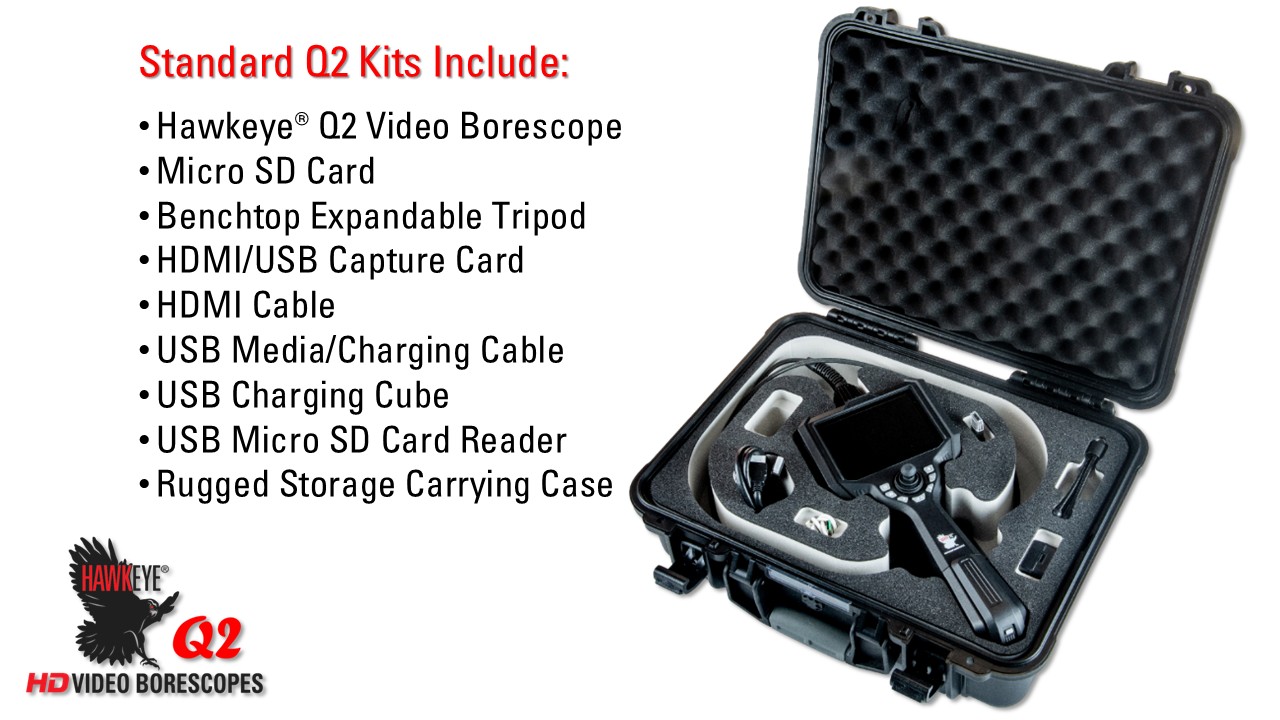

Q2 Micro Kit Includes: Hawkeye Q2 Micro Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case.
0.95mm 1.0m (3'3") N/A Stainless Steel or Poly VQ2 009 1000 NA $11,995 Buy Now
Q2 Insertion Tubes Only
0.95mm 1.0m (3'3") N/A Stainless Steel VQR 009 1000 NA $9,795 Buy Now
Q2 Video Borescope Spare Battery
VQ2-BATT-1 $395 Buy Now
Q2 Video Borescope Host
VQ2-HOST-1 $2,395 Buy Now
Q2 Video Borescope Replacement Charging Cable
VQ2-CHGCBL-1 $95 Buy Now
Q2 Video Borescope Replacement HDMI Cable
VQ2-HDMI-CABLE-1 $75 Buy Now
Q2 Video Borescope Case (under 6 meter)
VQ2-CASE-1 $395 Buy Now

Download Pricing Table

Hawkeye Micro Q2 Video Borescope

Hawkeye®

Q2 Micro Video Borescope

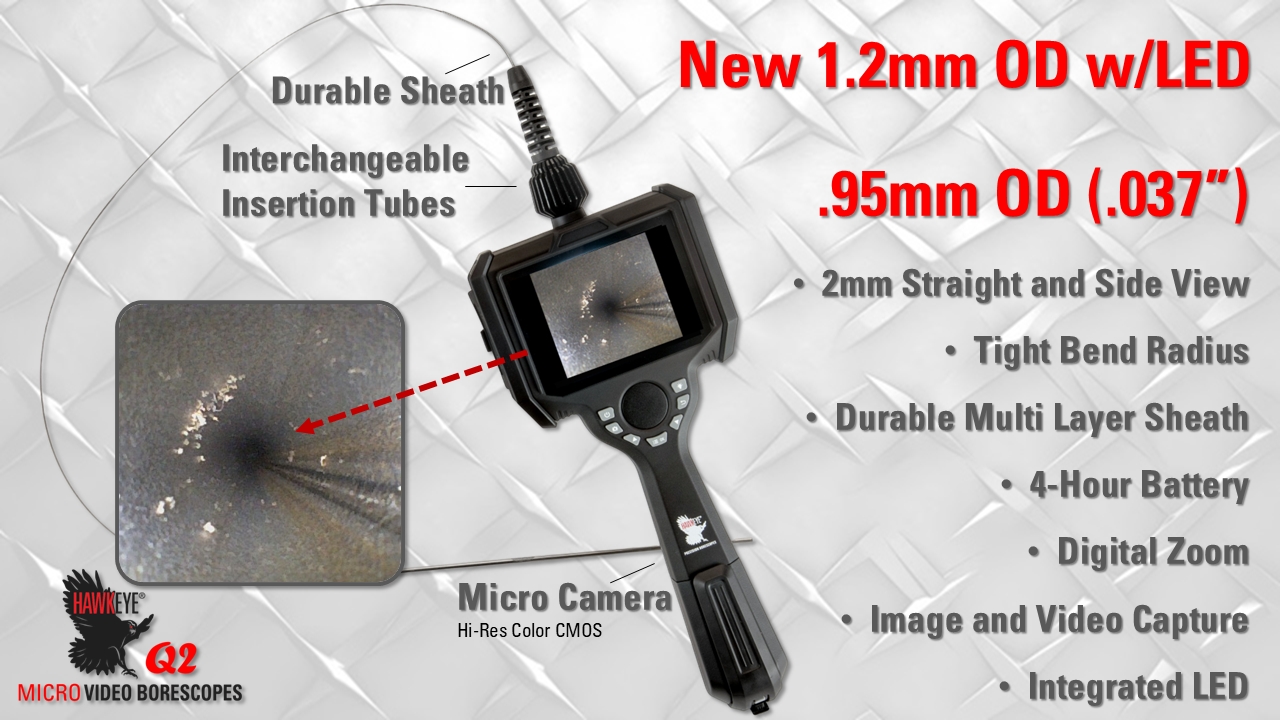

Gradient Lens Hawkeye® Q2 Micro Video Borescope features diameters as small as .95mm outer diameter. The Micro Q2 features a camera in the tip, giving customers a full screen high resolution image that is 8x higher than the MicroFlex Fiberscope. Our innovative design allows a much tighter bend radius, and substantially more durability than previous technology. Timely and costly repairs due to image fiber damage will be a thing of the past. In the event a tube is damaged users will be able to swap in a new insertion tube in the field. Larger diameter and longer length probes can also be utilized if your applications require more than one diameter or length .  The Micro Q2 Video Borescope offers image and video capture, and  4 hour battery life combined with a compact, portable and durable design.

Expanding on the popular Hawkeye V2, V3 and Q2, which were launched in 2012, the new Micro Q2 incorporates technological advancements that expand the offering of video borescopes offered by Gradient Lens Corporation.

The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.

Hawkeye® Q2 Micro Video Borescope Specifications

Diameter .95mm (.037") (+0.1mm/-0mm)
Lengths 1meter (3'3")
Articulation N/A
Field-of-View 100° Diagonal +/- 10°
Depth-of-Field 1.5mm - infinity
Direction-of-View 0°: .95mm
Sheath Stainless Steel Spring Sheath or Polyamide
Illumination Integrated White LED
Display 5" HD Display
Camera 160,000 pixel Color CMOS
Interfaces HDMI, USB, Micro-SD
Battery 4 hr. run time, Rechargeable Li-Ion
Recording Media Micro-SD Card
Digital Photo Format JPEG
Video Format MPEG 4
Operating Temp. Range Probe: - 20 to +60C (-4 to +140 F) :
Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range - 20 to + 60 C (-4 to +140 F)
Weight 2.2LB
Environmental Contact us for this information
Note Please contact our sales team at 585-235-2620 for more information.

Download Specifications
